75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Name: 75KG Pneumatic Terminal Crimping Machine for 235mm2 Copper Nose Aviation Terminals
Brand: Yihan
Price: 3 USD

Quality 75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals for sale

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-TS01

Usage : Crimping

Product name : Desktop pneumatic crimping machine

Type : Terminal crimping machines

Weight : 75KG

Crimp method : Four-core eight-point crimp

Power : AC220V 50HZ

Die through hole diameter : 17.5mm

Briquetting working diameter : 2-7mm

Indentation length : 4.4mm

Wire range : 2.0-35 Mm2

Warranty : 2 Years

Packaging Details : wooden package

Port : Shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $3,500.00/sets 1-2 sets

MOQ : 1 set

Contact Now

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Pneumatic four-core crimping tool 3-70mm2 copper nose aviation terminal crimping machine

Introduction:

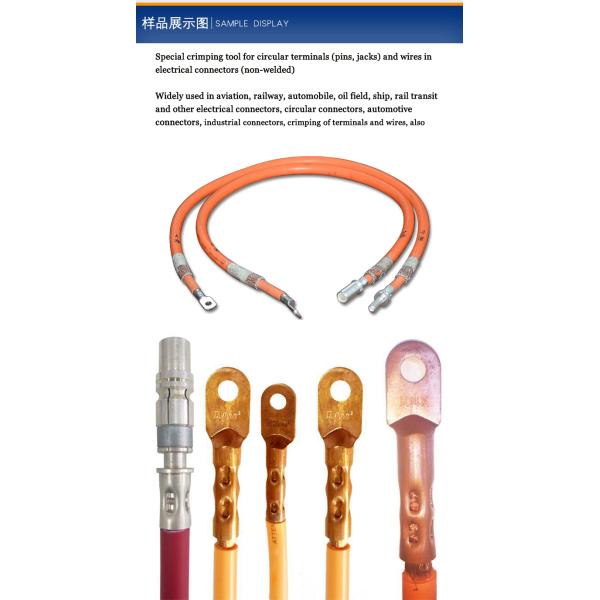

Special crimping tool for circular terminals (pins, jacks) and wires in electrical connectors (non-welded)
Widely used in aviation, railway, automobile, oil field, ship, rail transit and other electrical connectors, circular connectors, automotive connectors, industrial connectors, crimping of terminals and wires, also suitable for various industries, Electronic wiring harness, wire and cable, shielded wire connection.

Features:

1,Crimp equipment for wire harness manufacturing industry
2,synchronous movement of the four-core shaft crimping equipment, rapid crimping, one-shot molding
3,for crimping rotary terminals
4,used for crimping copper nose (DT, DTG, SC, JGK, JGY, JG, JM, C45, GT-1, GTY-1) below 70mm2
5,the crimping depth can be continuously adjusted, the minimum adjustment range is 0.1mm
6,crimping distance locking device to ensure high reliability of crimping
7, the power is completely from compressed air, safe and energy
8,small size, net weight 75KG, suitable for assembly line installation

Product Name	Pneumatic four-core crimping tool 2-35mm2 copper nose aviation terminal crimping machine
Model	YH-TS01
Mode	Four-core eight-point crimp
Die through hole diameter	17.5mm
Briquetting working diameter	2-7mm
Indentation length	4.4mm
Wire Range	2.0-35.0mm2
Weight	75KG
Work efficiency	About 2000pcs/h

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Product Show

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Company profile

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Advantages

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Certification

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Packaging delivery

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals

Problem solving

75KG Pneumatic Terminal Crimping Machine for 2-35mm2 Copper Nose Aviation Terminals
